[Oracle] JOIN (5) 다중 조인

    < 다중 JOIN >

    2개 이상의 테이블을 가지고 JOIN 할 때

---

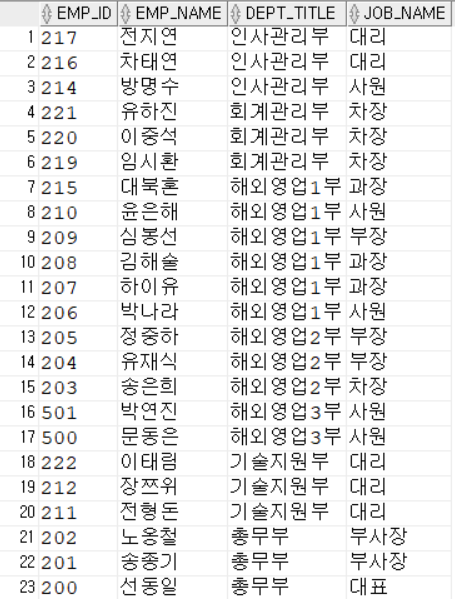

-- 사번, 사원명, 부서명, 직급명 조회

SELECT * FROM EMPLOYEE;     -- DEPT_CODE, JOB_CODE
SELECT * FROM DEPARTMENT;   -- DEPT_ID
SELECT * FROM JOB;          --            JOB_CODE

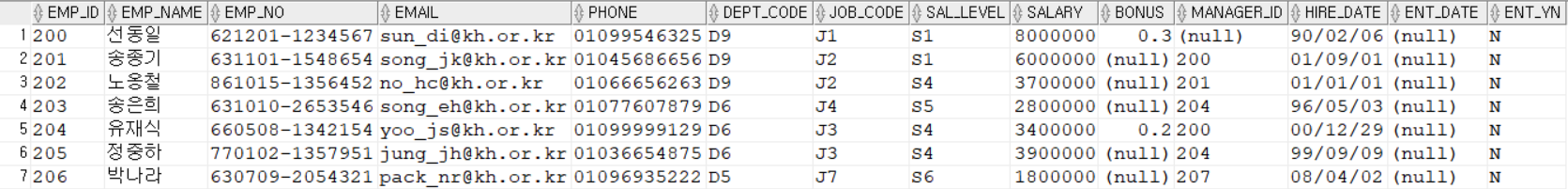

EMPLOYEE TABLE

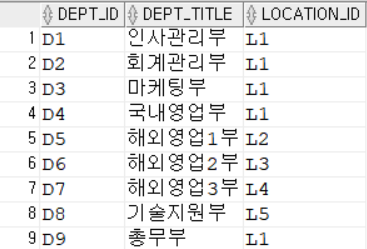

DEPARTMENT TABLE

JOB TABLE



-->> 오라클 전용 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, JOB_NAME
FROM EMPLOYEE E, DEPARTMENT, JOB J
WHERE DEPT_CODE = DEPT_ID
AND E.JOB_CODE = J.JOB_CODE;



-->> ANSI 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, JOB_NAME
FROM EMPLOYEE
JOIN DEPARTMENT ON (DEPT_CODE = DEPT_ID)
JOIN JOB USING(JOB_CODE);

---

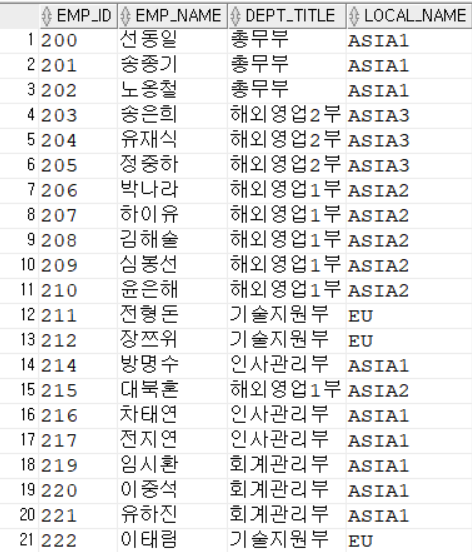

-- 사번, 사원명, 부서명, 지역명 조회

SELECT * FROM EMPLOYEE;     -- DEPT_CODE
SELECT * FROM DEPARTMENT;   -- DEPT_ID      LOCATION_ID

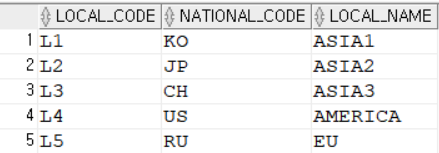

SELECT * FROM LOCATION;     --              LOCAL_CODE

-->> 오라클 전용 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, LOCAL_NAME
FROM EMPLOYEE, DEPARTMENT, LOCATION
WHERE DEPT_CODE = DEPT_ID
AND LOCATION_ID = LOCAL_CODE;



-->> ANSI 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, LOCAL_NAME
FROM EMPLOYEE
JOIN DEPARTMENT ON (DEPT_CODE = DEPT_ID)
JOIN LOCATION ON (LOCATION_ID = LOCAL_CODE);



---

--------------------------------------------------------실습문제---------------------------------------------------------

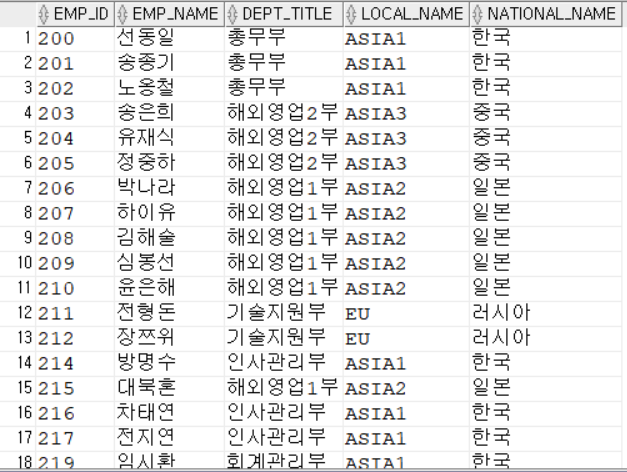

--1. 사번, 사원명, 부서명, 지역명, 국가명 조회 (EMP,DEP,LOC,NAT 조인)

SELECT * FROM EMPLOYEE;     -- DEPT_CODE
SELECT * FROM DEPARTMENT;   -- DEPT_ID      LOCATION_ID
SELECT * FROM LOCATION;     --              LOCAL_CODE   NATIONAL_CODE
SELECT * FROM NATIONAL;     --                              NATIONAL_CODE



-->> 오라클 전용 구문

-->> 오라클 전용 구문
SELECT EMP_ID, EMP_NAME, DEPT_TITLE, LOCAL_NAME, NATIONAL_NAME
FROM EMPLOYEE, DEPARTMENT, LOCATION L, NATIONAL N
WHERE DEPT_CODE = DEPT_ID
AND LOCATION_ID = LOCAL_CODE
AND L.NATIONAL_CODE = N.NATIONAL_CODE;



-->> ANSI 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, LOCAL_NAME, NATIONAL_NAME
FROM EMPLOYEE
JOIN DEPARTMENT ON (DEPT_CODE = DEPT_ID)
JOIN LOCATION ON (LOCATION_ID = LOCAL_CODE)
JOIN NATIONAL USING (NATIONAL_CODE);

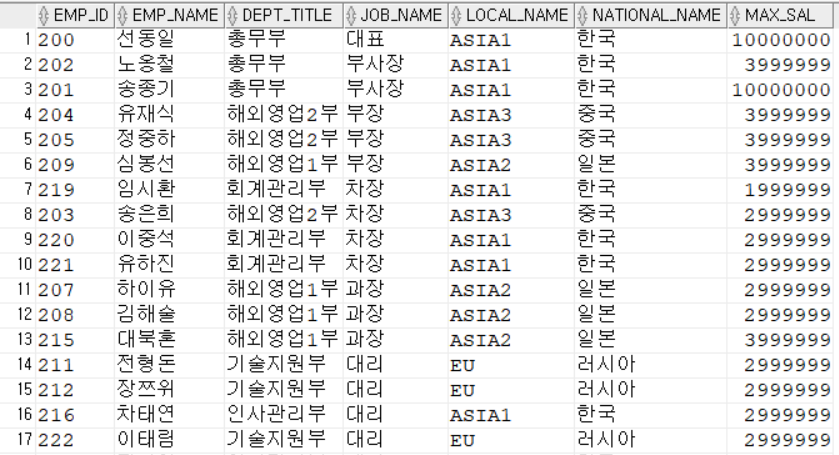

-- 2. 사번, 사원명 ,부서명, 직급명, 지역명, 국가명, 해당 급여등급에서 받을 수 있는 최대금액 조회

SELECT * FROM EMPLOYEE;     --  DEPT_CODE   JOB_CODE                                    SAL_LEVEL
SELECT * FROM DEPARTMENT;   --  DEPT_ID                 LOCATION_ID
SELECT * FROM JOB;          --              JOB_CODE
SELECT * FROM LOCATION;     --                          LOCAL_CODE      NATIONAL_CODE
SELECT * FROM NATIONAL;     --                                          NATIONAL_CODE
SELECT * FROM SAL_GRADE;    --                                                          SAL_LEVEL



-->> 오라클 전용 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, JOB_NAME, LOCAL_NAME, NATIONAL_NAME, MAX_SAL
FROM EMPLOYEE E, DEPARTMENT, JOB J, LOCATION L, NATIONAL N, SAL_GRADE S
WHERE DEPT_CODE = DEPT_ID
AND E.JOB_CODE = J.JOB_CODE
AND LOCATION_ID = LOCAL_CODE
AND L.NATIONAL_CODE = N.NATIONAL_CODE
AND E.SAL_LEVEL = S.SAL_LEVEL;



-->> ANSI 구문

SELECT EMP_ID, EMP_NAME, DEPT_TITLE, JOB_NAME, LOCAL_NAME, NATIONAL_NAME, MAX_SAL
FROM EMPLOYEE
JOIN DEPARTMENT D ON (DEPT_CODE = DEPT_ID)
JOIN JOB USING(JOB_CODE)
JOIN LOCATION L ON (D.LOCATION_ID = L.LOCAL_CODE)
JOIN NATIONAL N USING(NATIONAL_CODE)
JOIN SAL_GRADE USING(SAL_LEVEL);
